HATEC Z-50

HATEC Z louvre boards, facing louvre boards protecting from weather conditions, claddings of technical rooms, airing and shading.

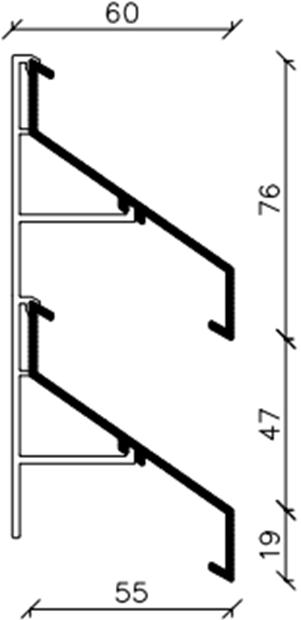

· Sizes length = 6000 mm sz = 76 mm

· Integration depth 60 mm / 55 mm

· Span of supports 800 mm / 1,200 mm

· Frame it can be ordered with our without frame

· Protection against birds aluminium; grid size: 7 x 7 mm

· Protection against insects stainless steel grid size: 1.4 x 1.4 mm
glass-fibre cloth grid size: 1.2 x 1.4 mm

· Surface                                             raw aluminium (untreated)
                                                          anodized aluminium
                                                          powder-coated, in RAL colours
