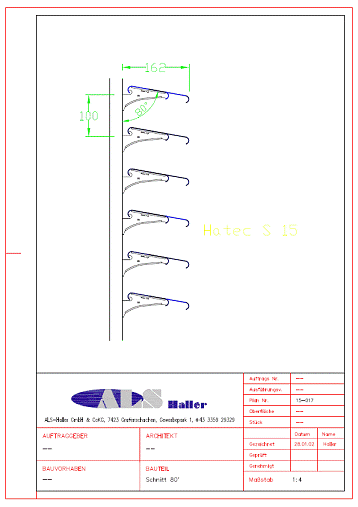

Hatec S-15
Specification of Hatec S-15
For reducing direct sun radiation intruding glass surfaces. The no-handling and no-maintenance system stands off heat however insures almost obstacle-free visibility.
The louvre boards and the supports are rust-free AlMgSi 0,5 aluminium profiles.
The consoles serving as the support structure are made of hot dip galvanized ST 37 steel. The material of the fixing elements is V4A/V2A stainless steel. For avoiding noise caused by the wind and dilatation emerging as an effect of the heat the Hatec sunshade louvre boards are connected to the support profiles with RAL7035-colour plastic support elements. Each louvre board can be dismantled non-destructively.
